OUR SERVICES
CCTV CRAWLER INSPECTIONS
Robotic pipeline investigations for sewer and stormwater networks. Non-destructive, accurate, and fully reported, delivering the data you need to make informed decisions.
SERVICE OVERVIEW
WHAT IS A CCTV CRAWLER INSPECTION

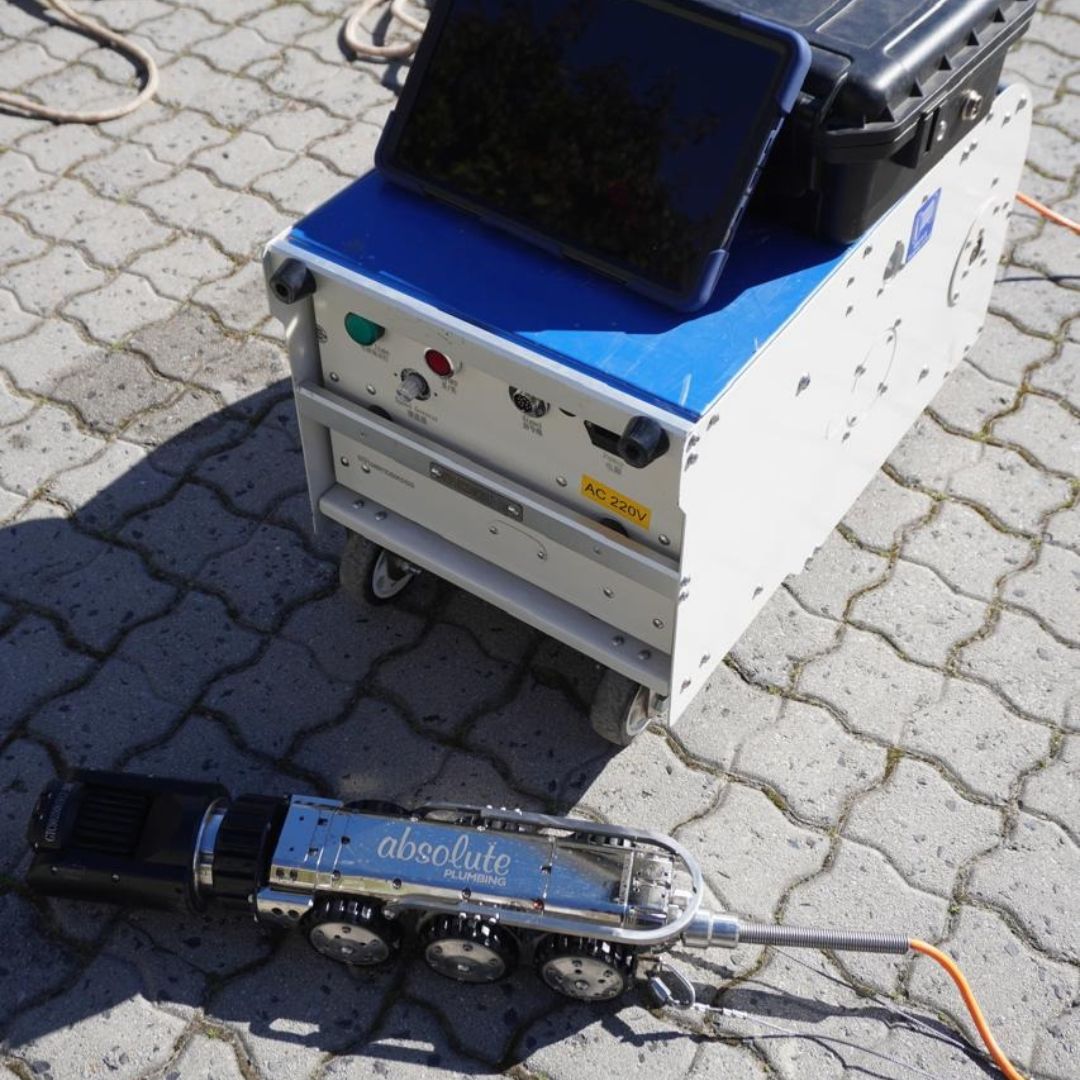

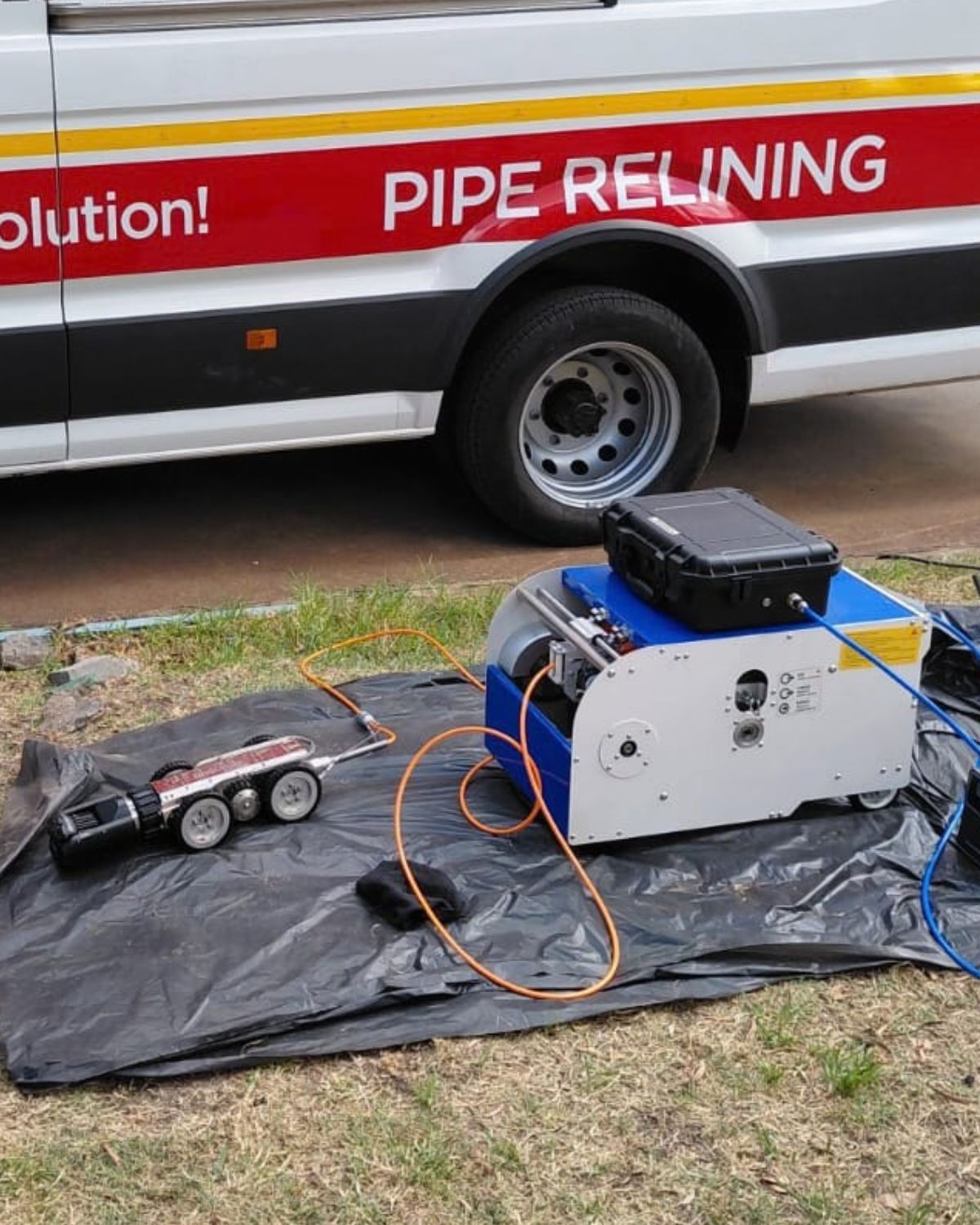

A CCTV crawler inspection involves deploying a remotely operated robotic camera unit through a pipeline to capture high-definition video footage of the internal condition of the pipe. The crawler is controlled by a technician at ground level, who navigates it through the network while live footage is transmitted to an onsite monitor and recorded for post-processing.
This method allows for thorough assessment of pipe condition, structural integrity and the identification of defects — without any excavation or disruption to the surrounding surface or infrastructure.
Inspections are carried out in accordance with industry standards and the results are used to inform maintenance prioritisation, rehabilitation planning, budgeting and network management decisions.
AT A GLANCE
Pipe Diameter Range
150mm to 2000mm
Typical Turnaround
Report delivered within 5 business days
Video Format
MP4 HD footage with overlaid distance counter and GPS
HOW IT WORKS
OUR INSPECTION PROCESS
We treat every project as specification work: scoped to your objective up front, delivered to a clear standard, and documented so every stakeholder can rely on the results. That discipline is why engineers, municipalities and contractors bring us onto their most sensitive sites — and why they come back.
01
Pre-Inspection Planning
We review existing network records, confirm access points and agree the scope of works with the client before mobilisation.
02
Site Mobilisation
Equipment is transported to site, traffic management is set up where required and access chambers are located and prepared.
03
Camera Deployment
The robotic crawler is lowered into the pipeline and navigated through the network while HD footage is recorded and monitored live.
04
Defect Coding
All observations are coded in real time, capturing defect type, severity, location and distance from access.
05
Report Delivery
A full written inspection report, video footage and defect schedule are compiled and delivered electronically within the agreed timeframe.
WHY CHOOSE CCTV
KEY BENEFITS
CCTV crawler inspection is the most reliable method for understanding the true condition of buried pipelines.
100% Visual Coverage
Every metre of inspected pipeline is recorded in full HD, providing a complete and irrefutable record of pipe condition at the time of inspection.
No Excavation Required
The entire inspection is carried out through existing access chambers. No digging, surface breaking or disruption to operations or traffic.
Data-Driven Decisions
Detailed defect schedules allow you to prioritise maintenance spend accurately, avoiding costly over-capitalisation on low-risk assets.
Early Problem Detection
Identify cracks, root intrusion, joint displacement, corrosion and blockages before they become structural failures or emergency callouts.
Compliance & Due Diligence
CCTV reports provide documented evidence for asset transfers, insurance claims, municipal compliance and pre-construction investigations.
Cost Effective
A fraction of the cost of exploratory excavation, with a far more complete and reliable dataset to support rehabilitation planning decisions.
WHERE WE WORK
APPLICATIONS
CCTV crawler inspections are applicable across a wide range of project types, asset classes and client sectors. Our teams have conducted inspections in residential, commercial, industrial and municipal environments throughout South Africa.
- Municipal Sewer Networks
- Stormwater Drainage
- Residential Pre-Purchase
- Pre-Construction Surveys
- Asset Transfer Inspections
- Industrial Facilities
- Blockage Investigation
- Infiltration Assessment
- Rehabilitation Planning
What You Receive
Deliverables
Every CCTV inspection engagement includes a comprehensive set of deliverables, prepared by our qualified inspection team and reviewed before submission.
Full Inspection Report
Written summary of findings including overall pipe condition rating, key observations and recommendations for maintenance or rehabilitation.
HD Video Footage
MP4 recordings for every run inspected, with overlaid pipeline chainage, date/time stamp and GPS coordinates where applicable.
Defect Schedule
Itemised spreadsheet log of all coded defects, including defect type, severity grade, distance from access and photographic reference.
Still Photographs
High-resolution frame captures of all significant defects and features noted during the inspection, referenced in the defect schedule.
Pipeline Sketch / Diagram
Schematic showing the inspected run(s) with access chamber references, pipe dimensions, flow direction and defect locations marked.
EXPLORE MORE
Related Services
We treat every project as specification work: scoped to your objective up front, delivered to a clear standard, and documented so every stakeholder can rely on the results. That discipline is why engineers, municipalities and contractors bring us onto their most sensitive sites — and why they come back.
Smoke Testing
Identifies defects, illegal connections and cross-contamination in sewer networks that CCTV alone may not reveal.
Pressure & Flow Logging
Quantify the hydraulic performance of your network alongside the structural data from CCTV inspections.
Utility Locating & Mapping
Confirm the position and depth of buried pipelines to complement your CCTV inspection programme.
Ready to Book an Inspection?
Contact our team to discuss your pipeline network and receive a detailed, no-obligation quote within 24 hours.
